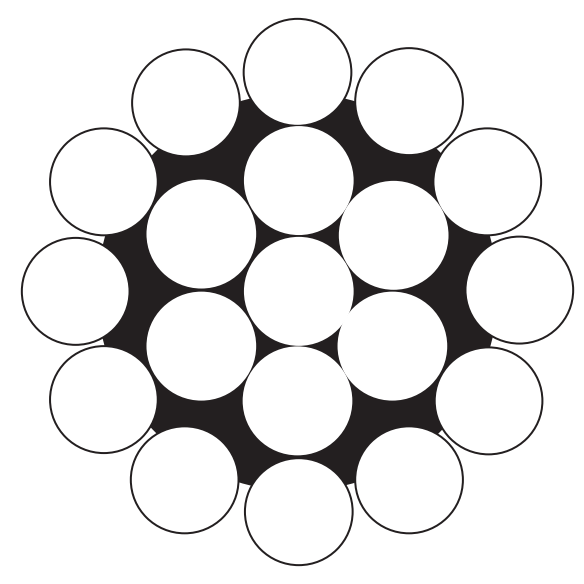

| Specification: DIN3053 1x19 | |||
| Nominal Diameter | Approx. | Nominal Tensile Strength | |
| 1570 N/mm2 | 1770 N/mm2 | ||
| Weight | Min. Breaking Strength | ||
| mm | kg/100m | KN | KN |
| 1.0 | 0.50 | 0.825 | 0.93 |
| 1.2 | 0.71 | 1.19 | 1.34 |
| 1.5 | 1.11 | 1.86 | 2.09 |
| 2.0 | 1.98 | 3.30 | 3.72 |
| 2.5 | 3.10 | 5.15 | 5.81 |
| 3.0 | 4.46 | 7.42 | 8.37 |
| 3.5 | 6.06 | 10.1 | 11.4 |
| 4.0 | 7.93 | 13.2 | 14.9 |
| 5.0 | 12.4 | 20.6 | 23.2 |
| 6.0 | 17.8 | 29.7 | 33.5 |
| 7.0 | 24.3 | 40.4 | 45.6 |
| 8.0 | 31.7 | 52.8 | 59.5 |
| 9.0 | 40.1 | 66.8 | 75.3 |
| 10 | 49.5 | 82.5 | 93.0 |
| 11 | 59.9 | 99.8 | -- |
| 12 | 71.3 | 119 | -- |
| Specification: DIN3053 1x19 | |||
| Nominal Diameter | Approx. | Nominal Tensile Strength | |
| 1570 N/mm2 | 1770 N/mm2 | ||
| Weight | Min. Breaking Strength | ||
| mm | kg/100m | KN | KN |
| 1.0 | 0.50 | 0.825 | 0.93 |
| 1.2 | 0.71 | 1.19 | 1.34 |
| 1.5 | 1.11 | 1.86 | 2.09 |
| 2.0 | 1.98 | 3.30 | 3.72 |
| 2.5 | 3.10 | 5.15 | 5.81 |
| 3.0 | 4.46 | 7.42 | 8.37 |
| 3.5 | 6.06 | 10.1 | 11.4 |
| 4.0 | 7.93 | 13.2 | 14.9 |
| 5.0 | 12.4 | 20.6 | 23.2 |
| 6.0 | 17.8 | 29.7 | 33.5 |
| 7.0 | 24.3 | 40.4 | 45.6 |
| 8.0 | 31.7 | 52.8 | 59.5 |
| 9.0 | 40.1 | 66.8 | 75.3 |
| 10 | 49.5 | 82.5 | 93.0 |
| 11 | 59.9 | 99.8 | -- |
| 12 | 71.3 | 119 | -- |
