| Specification: RR-W-410D | ||||||
| 6 x 19+IWRC, 6 x 19(S)+IWRC, 6 x 19(W)+IWRC, 6 x 25(Fi)+IWRC, 6 x 26(WS)+IWRC | ||||||

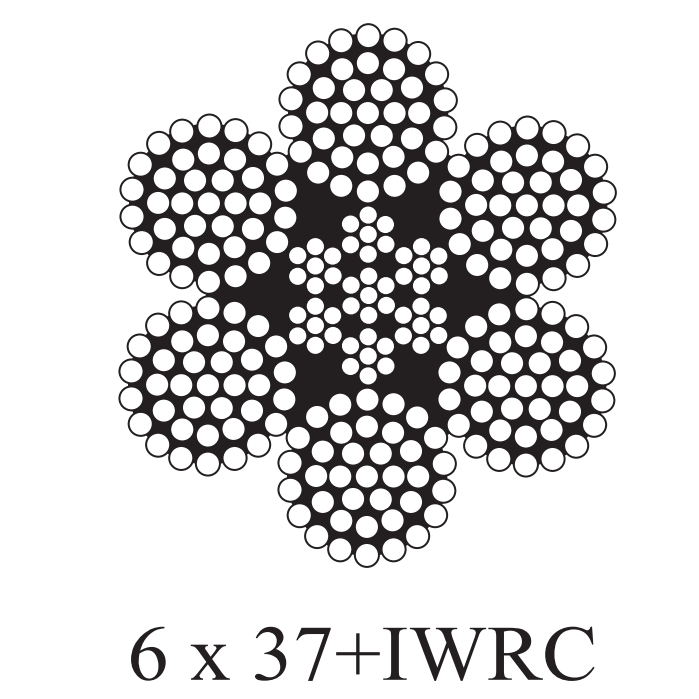

| 6 x 37+IWRC, 6 x 36(WS)+IWRC | ||||||
| Improved Plow Steel (IPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 5,880 | 5,300 | 103 | 46.8 | — | — |
| 5/16" | 9,160 | 8,240 | 161 | 73.2 | — | — |
| 3/8" | 13,120 | 11,800 | 234 | 106 | 260 | 118 |
| 7/16" | 17,780 | 16,000 | 315 | 143 | 350 | 160 |
| 1/2" | 23,000 | 20,700 | 412 | 187 | 460 | 209 |
| 9/16" | 29,000 | 26,100 | 522 | 237 | 590 | 265 |
| 5/8" | 35,800 | 32,200 | 646 | 293 | 720 | 327 |
| 3/4" | 51,200 | 46,000 | 930 | 421 | 1,040 | 472 |
| 7/8" | 69,200 | 62,200 | 1,270 | 574 | 1,420 | 642 |
| 1" | 89,800 | 80,800 | 1,650 | 750 | 1,850 | 840 |
| 1-1/8" | 113,000 | 101,800 | 2,090 | 950 | 2,340 | 1,060 |
| 1-1/4" | 138,000 | 125,000 | 2,580 | 1,170 | 2,890 | 1,310 |
| 1-3/8" | 167,000 | 150,400 | 3,130 | 1,420 | 3,500 | 1,590 |
| 1-1/2" | 197,000 | 178,000 | 3,730 | 1,690 | 4,160 | 1,890 |
| Extra Improved Plow Steel (EIPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 6,800 | 6,120 | 103 | 46,8 | — | — |
| 5/16" | 10,540 | 9,480 | 161 | 73,2 | — | — |
| 3/8" | 15,100 | 13,600 | 234 | 106 | 260 | 118 |
| 7/16" | 20,400 | 18,360 | 315 | 143 | 350 | 160 |
| 1/2" | 26,600 | 24,000 | 412 | 187 | 460 | 209 |
| 9/16" | 33,600 | 30,200 | 522 | 237 | 590 | 265 |
| 5/8" | 41,200 | 37,000 | 646 | 293 | 720 | 327 |
| 3/4" | 58,800 | 53,000 | 930 | 421 | 1,040 | 472 |
| 7/8" | 79,600 | 71,600 | 1,270 | 574 | 1,420 | 642 |
| 1" | 103,400 | 93,000 | 1,650 | 750 | 1,850 | 840 |
| 1-1/8" | 130,000 | 117,000 | 2,090 | 950 | 2,340 | 1,060 |
| 1-1/4" | 159,800 | 143,800 | 2,580 | 1,170 | 2,890 | 1,310 |
| 1-3/8" | 192,000 | 172,800 | 3,130 | 1,420 | 3,500 | 1,590 |
| 1-1/2" | 228,000 | 206,000 | 3,730 | 1,690 | 4,160 | 1,890 |
| Specification: RR-W-410D | ||||||
| 6 x 19+IWRC, 6 x 19(S)+IWRC, 6 x 19(W)+IWRC, 6 x 25(Fi)+IWRC, 6 x 26(WS)+IWRC | ||||||
| 6 x 37+IWRC, 6 x 36(WS)+IWRC | ||||||
| Improved Plow Steel (IPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 5,880 | 5,300 | 103 | 46.8 | — | — |
| 5/16" | 9,160 | 8,240 | 161 | 73.2 | — | — |
| 3/8" | 13,120 | 11,800 | 234 | 106 | 260 | 118 |
| 7/16" | 17,780 | 16,000 | 315 | 143 | 350 | 160 |
| 1/2" | 23,000 | 20,700 | 412 | 187 | 460 | 209 |
| 9/16" | 29,000 | 26,100 | 522 | 237 | 590 | 265 |
| 5/8" | 35,800 | 32,200 | 646 | 293 | 720 | 327 |
| 3/4" | 51,200 | 46,000 | 930 | 421 | 1,040 | 472 |
| 7/8" | 69,200 | 62,200 | 1,270 | 574 | 1,420 | 642 |
| 1" | 89,800 | 80,800 | 1,650 | 750 | 1,850 | 840 |
| 1-1/8" | 113,000 | 101,800 | 2,090 | 950 | 2,340 | 1,060 |
| 1-1/4" | 138,000 | 125,000 | 2,580 | 1,170 | 2,890 | 1,310 |
| 1-3/8" | 167,000 | 150,400 | 3,130 | 1,420 | 3,500 | 1,590 |
| 1-1/2" | 197,000 | 178,000 | 3,730 | 1,690 | 4,160 | 1,890 |
| Extra Improved Plow Steel (EIPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 6,800 | 6,120 | 103 | 46,8 | — | — |
| 5/16" | 10,540 | 9,480 | 161 | 73,2 | — | — |
| 3/8" | 15,100 | 13,600 | 234 | 106 | 260 | 118 |
| 7/16" | 20,400 | 18,360 | 315 | 143 | 350 | 160 |
| 1/2" | 26,600 | 24,000 | 412 | 187 | 460 | 209 |
| 9/16" | 33,600 | 30,200 | 522 | 237 | 590 | 265 |
| 5/8" | 41,200 | 37,000 | 646 | 293 | 720 | 327 |
| 3/4" | 58,800 | 53,000 | 930 | 421 | 1,040 | 472 |
| 7/8" | 79,600 | 71,600 | 1,270 | 574 | 1,420 | 642 |
| 1" | 103,400 | 93,000 | 1,650 | 750 | 1,850 | 840 |
| 1-1/8" | 130,000 | 117,000 | 2,090 | 950 | 2,340 | 1,060 |
| 1-1/4" | 159,800 | 143,800 | 2,580 | 1,170 | 2,890 | 1,310 |
| 1-3/8" | 192,000 | 172,800 | 3,130 | 1,420 | 3,500 | 1,590 |
| 1-1/2" | 228,000 | 206,000 | 3,730 | 1,690 | 4,160 | 1,890 |
