Our main products are: Galvanized wires,Steel wire ropes,Aircraft cables,Stainless steel cables,Wire Rope slings,Cable assemblies...
 |

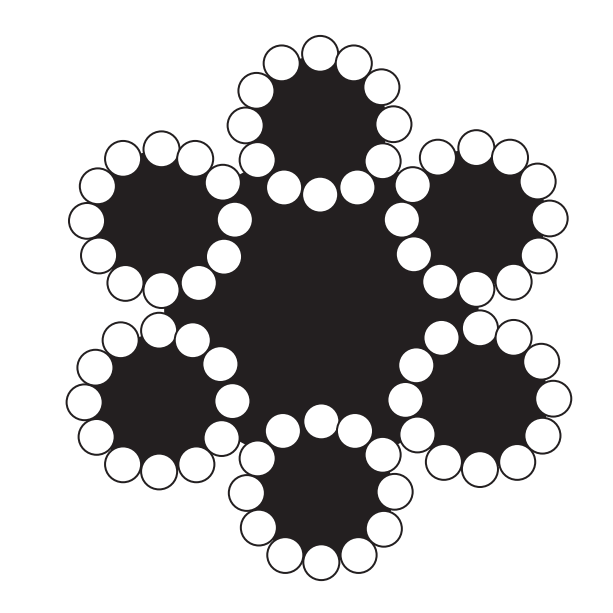

| Specification: BS302 6x12+7FC | |||
| Nominal Diameter | Approx | Nominal Tensile Strength | |
| 1570 N/mm2 | 1770 N/mm2 | ||
| Weight | Min. Breaking Strength | ||
| mm | kg/100m | KN | KN |
| 2 | 1.00 | - | 1.48 |
| 3 | 2.26 | - | 3.33 |
| 4 | 4.02 | - | 5.92 |
| 5 | 6.28 | - | 9.25 |
| 6 | 9.04 | - | 13.3 |
| 7 | 12.3 | - | 18.1 |
| 8 | 16.1 | 21.0 | 23.7 |
| 9 | 20.3 | 26.6 | 30.0 |
| 10 | 25.1 | 32.8 | 37.0 |
| 12 | 36.1 | 47.3 | 53.3 |
| 14 | 49.2 | 64.3 | 72.5 |
| 16 | 64.3 | 84.0 | 94.7 |
| Specification: BS302 6x12+7FC | |||
| Nominal Diameter | Approx | Nominal Tensile Strength | |
| 1570 N/mm2 | 1770 N/mm2 | ||
| Weight | Min. Breaking Strength | ||
| mm | kg/100m | KN | KN |
| 2 | 1.00 | - | 1.48 |
| 3 | 2.26 | - | 3.33 |
| 4 | 4.02 | - | 5.92 |
| 5 | 6.28 | - | 9.25 |
| 6 | 9.04 | - | 13.3 |
| 7 | 12.3 | - | 18.1 |
| 8 | 16.1 | 21.0 | 23.7 |
| 9 | 20.3 | 26.6 | 30.0 |
| 10 | 25.1 | 32.8 | 37.0 |
| 12 | 36.1 | 47.3 | 53.3 |
| 14 | 49.2 | 64.3 | 72.5 |
| 16 | 64.3 | 84.0 | 94.7 |
