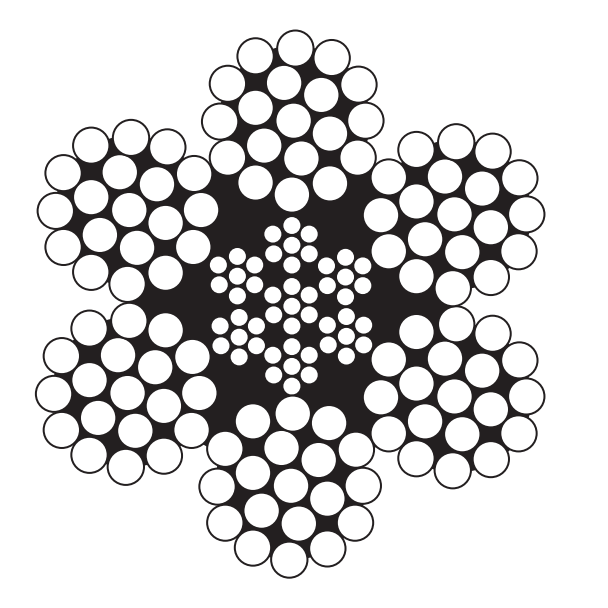

6x19+IWRC

Specification: DIN3060
6x19+IWRC
Nominal Diameter	Approx.		Nominal Tensile Strength
	Weight		1570 N/mm2		1770 N/mm2		1960 N/mm2
	kg/100m		Minimum Breaking Strength (KN)
mm	FC	IWRC	FC	WSC	FC	WSC	FC	WSC
2	1.38	1.52	-	-	2.18	2.35	2.41	2.60
2.5	2.16	2.38	-	-	3.40	3.67	3.76	4.06
3	3.11	3.42	-	-	4.90	5.29	5.43	5.86
4	5.54	6.09	-	-	8.70	9.40	9.63	10.40
5	8.65	9.52	-	-	13.6	14.7	15.1	16.3
6	12.5	13.8	-	-	19.6	21.2	21.7	23.5
7	17.0	18.7	-	-	26.7	28.8	29.6	31.9
8	22.1	24.3	30.9	33.3	34.8	37.6	38.5	41.6
9	28.0	30.8	39.1	42.2	44.1	47.6	48.8	52.7
10	34.6	38.1	48.2	52.1	54.4	58.8	60.2	65.1
11	41.9	46.1	58.4	63.1	65.8	71.1	72.9	78.7
12	49.8	54.8	69.5	75.0	78.3	84.6	86.7	93.7
13	58.5	64.3	81.5	88.1	91.9	99.3	-	-
14	67.8	74.6	94.6	102	107	115	-	-
16	88.6	97.4	124	133	139	150	-	-
18	112	123	156	169	176	190	-	-
20	138	152	193	208	218	235	-	-
22	167	184	234	252	263	284	-	-
24	199	219	278	200	313	338	-	-
26	234	257	326	352	368	397	-	-
28	271	298	378	409	-	-	-	-
30	311	343	434	470	-	-	-	-
32	354	390	494	534	-	-	-	-
36	448	494	625	675	-	-	-	-
