| Specification: RR-W-410D | ||||||

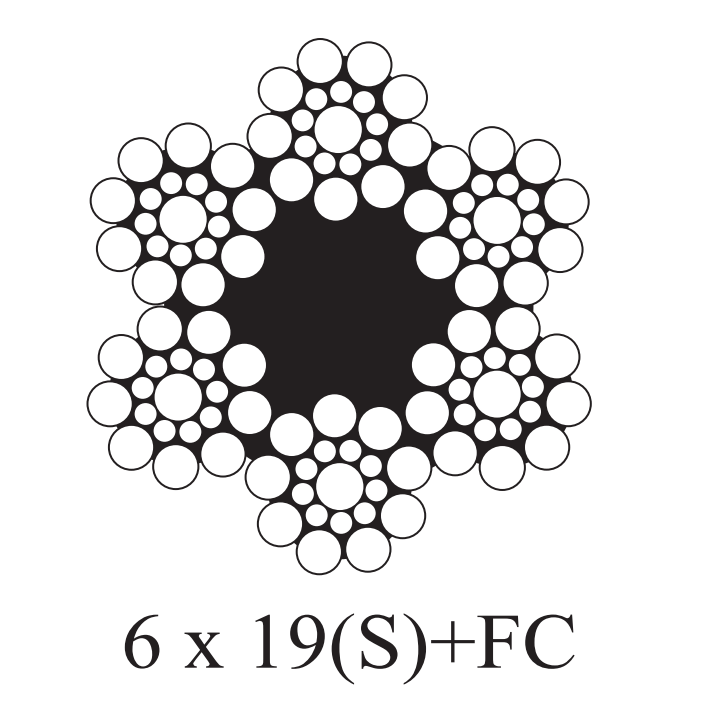

| 6 x 19+FC, 6 x 19(S)+FC? 6 x 19(W)+FC, 6 x 25(Fi)+FC, 6 x 26(WS)+FC | ||||||
| 6 x 37+FC, 6 x 36(WS)+FC | ||||||
| Improved Plow Steel (IPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 5,480 | 4,940 | 94 | 43 | — | — |
| 5/16" | 8,520 | 7,660 | 147 | 67 | — | — |
| 3/8" | 12,200 | 10,980 | 211 | 96 | 236 | 107 |
| 7/16" | 16,540 | 14,880 | 287 | 130 | 320 | 146 |
| 1/2" | 21,400 | 19,260 | 375 | 170 | 420 | 191 |
| 9/16" | 27,000 | 24,300 | 475 | 215 | 530 | 242 |
| 5/8" | 33,400 | 30,000 | 586 | 266 | 660 | 298 |
| 3/4" | 47,600 | 42,800 | 844 | 383 | 950 | 430 |
| 7/8" | 64,400 | 58,000 | 1,150 | 521 | 1,290 | 584 |
| 1" | 83,600 | 75,200 | 1,500 | 680 | 1,680 | 763 |
| 1-1/8" | 105,200 | 94,600 | 1,900 | 861 | 2,130 | 966 |
| 1-1/4" | 129,200 | 116,200 | 2,340 | 1,063 | 2,630 | 1,190 |
| l-3/8" | 155,400 | 139,800 | 2,840 | 1,287 | 3,180 | 1,440 |
| 1-1/2" | 184,000 | 165,600 | 3,380 | 1,530 | 3,780 | 1,720 |
| Extra Improved Plow Steel (EIPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 6,300 | 5,680 | 94 | 43 | — | — |
| 5/16" | 9,800 | 8,810 | 147 | 67 | — | — |
| 3/8" | 14,000 | 12,600 | 211 | 96 | 236 | 107 |
| 7/16" | 19,000 | 17,100 | 287 | 130 | 320 | 146 |
| 1/2" | 24,600 | 22,200 | 375 | 170 | 420 | 191 |
| 9/16" | 31,100 | 28,000 | 475 | 215 | 530 | 242 |
| 5/8" | 38,400 | 34,500 | 586 | 266 | 660 | 298 |
| 3/4" | 54,700 | 49,200 | 844 | 383 | 950 | 430 |
| 7/8" | 94,100 | 66,700 | 1,150 | 521 | 1,290 | 584 |
| 1" | 96,100 | 86,500 | 1,500 | 680 | 1,680 | 763 |
| 1-1/8" | 121,000 | 108,800 | 1,900 | 861 | 2,130 | 966 |
| 1-1/4" | 148,600 | 133,600 | 2,340 | 1,063 | 2,630 | 1,190 |
| 1-3/8" | 178,700 | 160,800 | 2,840 | 1,287 | 3,180 | 1,440 |
| 1-1/2" | 211,600 | 190,400 | 3,380 | 1,530 | 3,780 | 1,720 |
| Specification: RR-W-410D | ||||||
| 6 x 19+FC, 6 x 19(S)+FC? 6 x 19(W)+FC, 6 x 25(Fi)+FC, 6 x 26(WS)+FC | ||||||
| 6 x 37+FC, 6 x 36(WS)+FC | ||||||
| Improved Plow Steel (IPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 5,480 | 4,940 | 94 | 43 | — | — |
| 5/16" | 8,520 | 7,660 | 147 | 67 | — | — |
| 3/8" | 12,200 | 10,980 | 211 | 96 | 236 | 107 |
| 7/16" | 16,540 | 14,880 | 287 | 130 | 320 | 146 |
| 1/2" | 21,400 | 19,260 | 375 | 170 | 420 | 191 |
| 9/16" | 27,000 | 24,300 | 475 | 215 | 530 | 242 |
| 5/8" | 33,400 | 30,000 | 586 | 266 | 660 | 298 |
| 3/4" | 47,600 | 42,800 | 844 | 383 | 950 | 430 |
| 7/8" | 64,400 | 58,000 | 1,150 | 521 | 1,290 | 584 |
| 1" | 83,600 | 75,200 | 1,500 | 680 | 1,680 | 763 |
| 1-1/8" | 105,200 | 94,600 | 1,900 | 861 | 2,130 | 966 |
| 1-1/4" | 129,200 | 116,200 | 2,340 | 1,063 | 2,630 | 1,190 |
| l-3/8" | 155,400 | 139,800 | 2,840 | 1,287 | 3,180 | 1,440 |
| 1-1/2" | 184,000 | 165,600 | 3,380 | 1,530 | 3,780 | 1,720 |
| Extra Improved Plow Steel (EIPS) | ||||||
| Nominal Diameter | Min.Breaking Strength | Unit Weight | ||||
| Ungalv. | Galvanized | 6 x 19 or 6x 37 | 6 x 25,6 x 26 or 6 x 36 | |||
| in | lb | lb | lb/1000' | kg/1000' | lb/1000' | kg/1000' |
| 1/4" | 6,300 | 5,680 | 94 | 43 | — | — |
| 5/16" | 9,800 | 8,810 | 147 | 67 | — | — |
| 3/8" | 14,000 | 12,600 | 211 | 96 | 236 | 107 |
| 7/16" | 19,000 | 17,100 | 287 | 130 | 320 | 146 |
| 1/2" | 24,600 | 22,200 | 375 | 170 | 420 | 191 |
| 9/16" | 31,100 | 28,000 | 475 | 215 | 530 | 242 |
| 5/8" | 38,400 | 34,500 | 586 | 266 | 660 | 298 |
| 3/4" | 54,700 | 49,200 | 844 | 383 | 950 | 430 |
| 7/8" | 94,100 | 66,700 | 1,150 | 521 | 1,290 | 584 |
| 1" | 96,100 | 86,500 | 1,500 | 680 | 1,680 | 763 |
| 1-1/8" | 121,000 | 108,800 | 1,900 | 861 | 2,130 | 966 |
| 1-1/4" | 148,600 | 133,600 | 2,340 | 1,063 | 2,630 | 1,190 |
| 1-3/8" | 178,700 | 160,800 | 2,840 | 1,287 | 3,180 | 1,440 |
| 1-1/2" | 211,600 | 190,400 | 3,380 | 1,530 | 3,780 | 1,720 |
