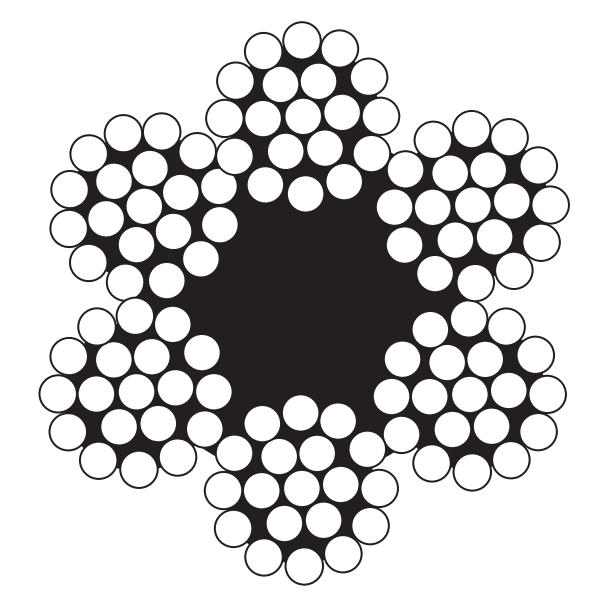

6x19(W)+FC

Specification: DIN3058
6x19(W)+FC

Nominal Diameter	Approx.		Nominal Tensile Strength
	Weight		1570 N/mm2		1770 N/mm2
	kg/100m		Minimum Breaking Strength (KN)
mm	FC	IWRC	FC	IWRC	FC	IWRC
6	13.4	14.8	-	-	21.1	22.8
7	18.3	20.1	-	-	28.7	31.0
8	23.8	26.2	33.2	35.9	37.5	40.5
9	30.2	33.2	42.1	45.5	47.4	51.2
10	37.3	41.0	52.0	56.1	58.6	63.8
11	45.1	49.6	62.9	67.9	70.9	76.5
12	53.7	59.0	74.8	80.8	84.3	91.1
13	63.0	69.3	87.8	94.8	99.0	107
14	73.1	80.4	102	110	115	124
15	83.9	92.3	117	126	132	142
16	95.5	105.0	133	144	150	162
17	108	119	150	162	169	183
18	121	133	168	182	190	205
19	135	148	188	203	211	228
20	149	164	208	224	234	253
22	181	198	251	272	283	306
24	215	236	299	323	337	364
26	252	277	351	379	396	428
28	292	321	407	440	459	496
30	336	369	467	505	527	569
32	382	420	532	575	-	-
36	483	531	673	727	-	-
