| Specification: RR-W-410G | |||||
| Improved Plow Steel | |||||
| Rope Diameter | Minimum | Acceptance | |||
| Nominal | Maximum | Approx. Weight | Breaking | Breaking | |
| (minimum) | Strength | Strength | |||
| inch | inch | lb/1000' | kg/1000' | lb | lb |

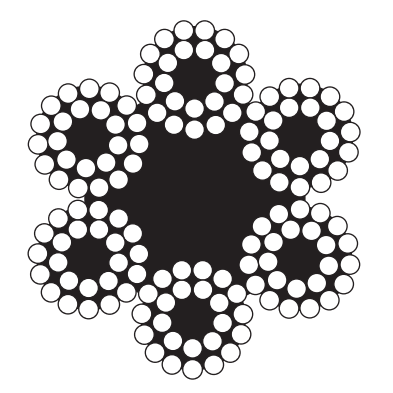

| 6x24+7FC, Galvanized | |||||
| 3/8 | 0.394 | 194 | 88 | 9,540 | 9,300 |
| 7/16 | 0.459 | 264 | 120 | 12,900 | 12,600 |
| 1/2 | 0.525 | 345 | 156 | 16,800 | 16,380 |
| 9/16 | 0.591 | 437 | 198 | 21,200 | 20,700 |
| 5/8 | 0.656 | 539 | 245 | 26,000 | 25,400 |
| 3/4 | 0.788 | 776 | 352 | 37,200 | 36,200 |
| 13/16 | 0.853 | 911 | 413 | 43,600 | 42,600 |
| 7/8 | 0.919 | 1057 | 479 | 50,400 | 49,200 |
| 1 | 1.050 | 1380 | 626 | 65,600 | 64,000 |
| 1-1/8" | 1.181 | 1747 | 792 | 82,400 | 80,400 |
| 1-1/4" | 1.313 | 2156 | 978 | 101,400 | 98,800 |
| Specification: RR-W-410G | |||||
| Improved Plow Steel | |||||
| Rope Diameter | Minimum | Acceptance | |||
| Nominal | Maximum | Approx. Weight | Breaking | Breaking | |
| (minimum) | Strength | Strength | |||
| inch | inch | lb/1000' | kg/1000' | lb | lb |
| 6x24+7FC, Galvanized | |||||
| 3/8 | 0.394 | 194 | 88 | 9,540 | 9,300 |
| 7/16 | 0.459 | 264 | 120 | 12,900 | 12,600 |
| 1/2 | 0.525 | 345 | 156 | 16,800 | 16,380 |
| 9/16 | 0.591 | 437 | 198 | 21,200 | 20,700 |
| 5/8 | 0.656 | 539 | 245 | 26,000 | 25,400 |
| 3/4 | 0.788 | 776 | 352 | 37,200 | 36,200 |
| 13/16 | 0.853 | 911 | 413 | 43,600 | 42,600 |
| 7/8 | 0.919 | 1057 | 479 | 50,400 | 49,200 |
| 1 | 1.050 | 1380 | 626 | 65,600 | 64,000 |
| 1-1/8" | 1.181 | 1747 | 792 | 82,400 | 80,400 |
| 1-1/4" | 1.313 | 2156 | 978 | 101,400 | 98,800 |
