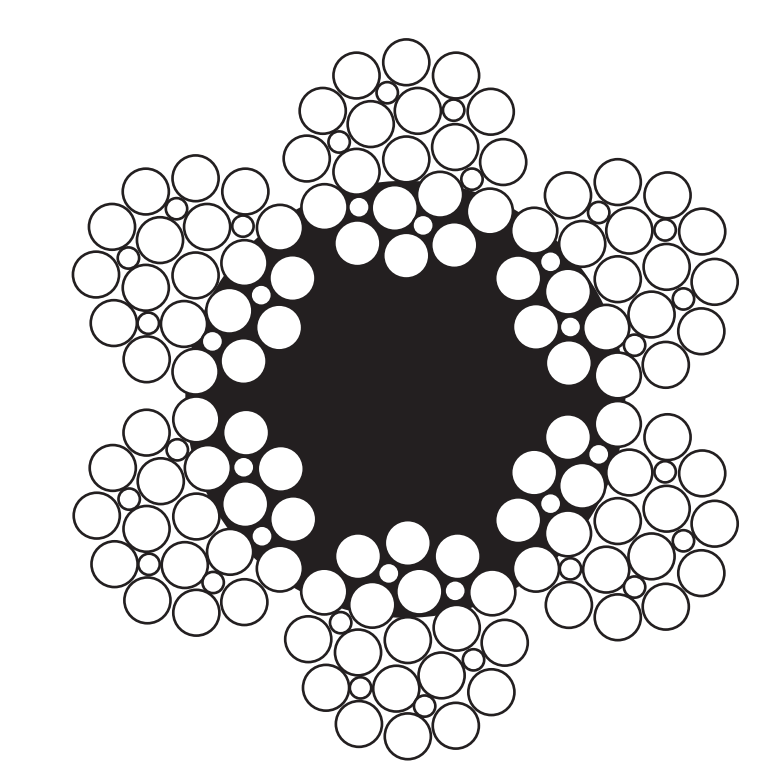

6x25(Fi)+FC

Specification: DIN3057
6x25(Fi)+FC

Nominal Diameter	Approx.		Nominal Tensile Strength
	Weight		1570 N/mm2		1770 N/mm2
	kg/100m		Minimum Breaking Strength (KN)
mm	FC	IWRC	FC	IWRC	FC	IWRC
8	24.3	26.8	33.9	36.6	38.3	41.3
9	30.8	33.9	42.9	46.4	48.4	52.3
10	38.0	41.8	53.0	57.3	59.8	64.6
11	46.0	50.6	64.2	69.3	72.3	78.1
12	54.7	60.2	76.3	82.5	86.1	93.0
13	64.3	70.6	89.6	96.8	101	109
14	74.5	82.0	104	112	117	127
15	85.5	94.1	119	129	135	145
16	97.3	107.0	136	147	153	165
17	110	121	153	166	173	187
18	123	135	172	186	194	209
19	137	151	191	207	216	233
20	152	167	212	229	239	258
22	184	202	257	277	289	312
24	219	241	305	330	344	372
26	257	283	358	387	404	436
28	298	328	416	449	469	506
30	342	376	478	515	538	581
32	389	428	543	586	612	661
36	493	542	687	742	775	837
