| Specification: DIN3064 | ||||||

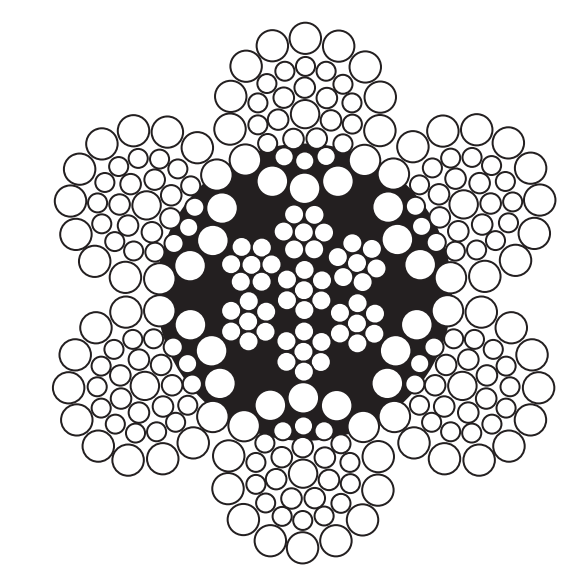

| 6x36(WS)+IWRC | ||||||
| Nominal Diameter | Approx. | Nominal Tensile Strength | ||||
| Weight | 1570 N/mm2 | 1770 N/mm2 | ||||
| kg/100m | Minimum Breaking Strength (KN) | |||||
| mm | FC | IWRC | FC | IWRC | FC | IWRC |
| 12 | 54.7 | 60.2 | 74.4 | 80.6 | 84.0 | 89.9 |
| 13 | 64.3 | 70.7 | 87.4 | 94.6 | 98.3 | 106 |
| 14 | 74.5 | 82.0 | 101 | 109 | 114 | 124 |
| 16 | 97.3 | 107 | 133 | 143 | 149 | 161 |
| 18 | 123 | 135 | 168 | 181 | 189 | 204 |
| 20 | 152 | 167 | 203 | 221 | 234 | 252 |
| 22 | 184 | 202 | 250 | 271 | 282 | 304 |
| 24 | 219 | 241 | 298 | 322 | 336 | 363 |
| 26 | 257 | 283 | 340 | 378 | 395 | 425 |
| 28 | 298 | 328 | 405 | 438 | 458 | 493 |
| 32 | 389 | 428 | 530 | 571 | 598 | 644 |
| 36 | 493 | 542 | 670 | 724 | - | - |
| 40 | 608 | 669 | 828 | 894 | - | - |
| 44 | 736 | 810 | 1000 | 1080 | - | - |
| Specification: DIN3064 | ||||||
| 6x36(WS)+IWRC | ||||||
| Nominal Diameter | Approx. | Nominal Tensile Strength | ||||
| Weight | 1570 N/mm2 | 1770 N/mm2 | ||||
| kg/100m | Minimum Breaking Strength (KN) | |||||
| mm | FC | IWRC | FC | IWRC | FC | IWRC |
| 12 | 54.7 | 60.2 | 74.4 | 80.6 | 84.0 | 89.9 |
| 13 | 64.3 | 70.7 | 87.4 | 94.6 | 98.3 | 106 |
| 14 | 74.5 | 82.0 | 101 | 109 | 114 | 124 |
| 16 | 97.3 | 107 | 133 | 143 | 149 | 161 |
| 18 | 123 | 135 | 168 | 181 | 189 | 204 |
| 20 | 152 | 167 | 203 | 221 | 234 | 252 |
| 22 | 184 | 202 | 250 | 271 | 282 | 304 |
| 24 | 219 | 241 | 298 | 322 | 336 | 363 |
| 26 | 257 | 283 | 340 | 378 | 395 | 425 |
| 28 | 298 | 328 | 405 | 438 | 458 | 493 |
| 32 | 389 | 428 | 530 | 571 | 598 | 644 |
| 36 | 493 | 542 | 670 | 724 | - | - |
| 40 | 608 | 669 | 828 | 894 | - | - |
| 44 | 736 | 810 | 1000 | 1080 | - | - |
