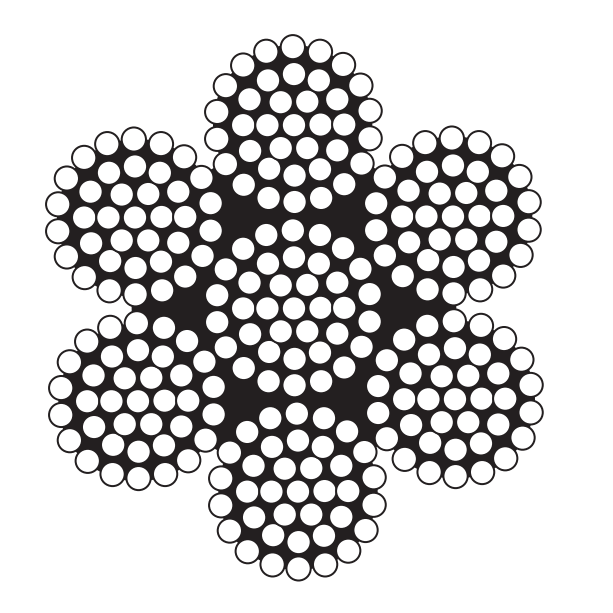

6x37+WSC

Specification: DIN3066
6x37+WSC

Dia.	Approx.		Nominal Tensile Strength
	Weight		1570 N/mm2		1770 N/mm2		1960 N/mm2
	kg/100m		Minimum Breaking Strength (KN)
mm	FC	IWRC	FC	IWRC	FC	IWRC	FC	IWRC
5	8.65	9.53	-	-	13.1	14.1	14.5	15.6
6	12.5	13.7	-	-	18.8	20.3	20.8	22.5
7	17.0	18.6	-	-	25.6	27.6	28.3	30.6
8	22.1	24.4	29.6	32.0	33.4	36.1	37.0	40.0
9	28.0	30.8	37.5	40.5	42.3	45.7	46.8	50.6
10	34.6	38.1	46.3	50.0	52.2	56.4	57.8	62.5
11	41.9	46.1	56.0	60.5	63.1	68.2	69.9	75.5
12	49.8	54.8	66.6	72.0	75.1	81.2	83.2	89.9
13	58.5	64.3	78.2	84.5	88.2	95.2	97.7	105.4
14	67.8	74.6	90.7	98.0	102	110	112.9	121.8
16	88.6	97.4	118	128	134	144	148.4	159.5
18	112	123	150	162	169	183	187.1	202.6
20	138	152	185	200	209	225	-	-
22	167	184	224	242	253	273	-	-
24	199	219	267	288	301	325	-	-
26	234	257	313	338	353	381	-	-
28	271	298	363	392	409	442	-	-
32	354	390	474	512	534	577	-	-
36	448	493	600	648	676	730	-	-
40	554	609	741	800	-	-	-	-
44	670	737	896	968	-	-	-	-
48	797	878	1070	1150	-	-	-	-
