| Specification: RR-W-410G | |||||
| Improved Plow Steel | |||||

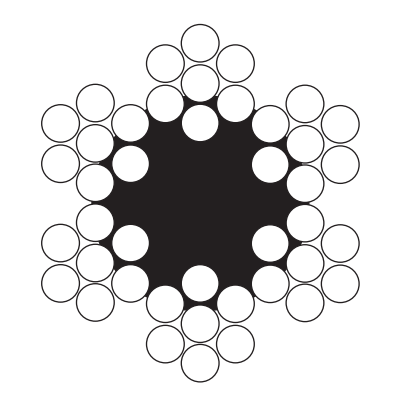

| 6x7+FC | |||||
| Rope Diameter | Minimum | ||||
| Nominal | Maximum | Approx. Weight | Breaking Strength | ||
| (minimum) | Uncoated | Galvanized | |||
| inch | inch | lb/1000' | kg/1000' | lb | lb |
| 1/4 | 0.265 | 97 | 44 | 5,280 | 4,760 |
| 5/16 | 0.328 | 151 | 69 | 8,200 | 7,380 |
| 3/8 | 0.394 | 218 | 99 | 11,720 | 10,540 |
| 7/16 | 0.459 | 296 | 134 | 15,860 | 14,280 |
| 1/2 | 0.525 | 387 | 176 | 20,600 | 18,540 |
| 9/16 | 0.591 | 490 | 222 | 26,000 | 23,400 |
| 5/8 | 0.656 | 605 | 275 | 31,800 | 28,600 |
| 3/4 | 0.788 | 871 | 395 | 45,400 | 40,800 |
| Specification: RR-W-410G | |||||
| Improved Plow Steel | |||||
| 6x7+FC | |||||
| Rope Diameter | Minimum | ||||
| Nominal | Maximum | Approx. Weight | Breaking Strength | ||
| (minimum) | Uncoated | Galvanized | |||
| inch | inch | lb/1000' | kg/1000' | lb | lb |
| 1/4 | 0.265 | 97 | 44 | 5,280 | 4,760 |
| 5/16 | 0.328 | 151 | 69 | 8,200 | 7,380 |
| 3/8 | 0.394 | 218 | 99 | 11,720 | 10,540 |
| 7/16 | 0.459 | 296 | 134 | 15,860 | 14,280 |
| 1/2 | 0.525 | 387 | 176 | 20,600 | 18,540 |
| 9/16 | 0.591 | 490 | 222 | 26,000 | 23,400 |
| 5/8 | 0.656 | 605 | 275 | 31,800 | 28,600 |
| 3/4 | 0.788 | 871 | 395 | 45,400 | 40,800 |
