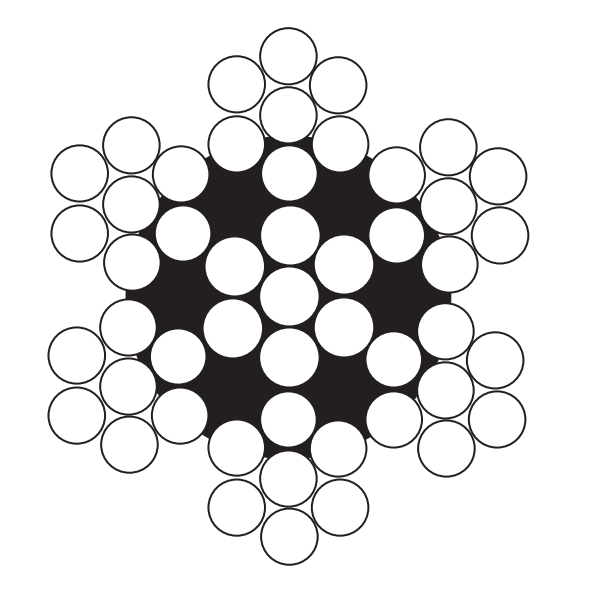

6x7+WSC (7x7)

Specification: DIN3055
6x7+WSC (7x7)

Nominal Diameter	Approx.		Nominal Tensile Strength
	Weight		1570 N/mm2		1770 N/mm2		1960 N/mm2
	kg/100m		Minimum Breaking Strength (KN)
mm	FC	WSC	FC	WSC	FC	WSC	FC	WSC
1.2	0.514	0.566	-	-	0.85	0.91	0.94	1.01
1.5	0.80	0.88	-	-	1.32	1.43	1.46	1.58
1.8	0.64	1.27	-	-	1.90	2.06	2.10	2.28
2.0	1.43	1.57	-	-	2.35	2.54	2.60	2.81
2.5	2.23	2.46	-	-	3.67	3.97	4.06	4.40
3.0	3.22	3.54	-	-	5.29	5.71	5.86	6.32
4.0	5.72	6.29	-	-	9.41	10.2	10.4	11.3
5.0	8.94	9.83	-	-	14.7	15.9	16.3	17.6
6.0	12.9	14.2	-	-	21.1	22.9	23.4	25.4
7.0	17.5	19.3	-	-	28.8	31.1	31.9	34.4
8.0	22.9	25.2	33.4	36.1	37.6	40.6	41.6	45.0
9.0	28.9	31.8	42.2	45.6	47.6	51.4	-	-
10	35.7	39.3	52.2	56.3	58.8	63.5	-	-
11	43.2	47.5	63.1	68.2	71.1	76.8	-	-
12	51.5	56.7	75.1	81.1	84.7	91.5	-	-
13	60.4	66.4	88.1	95.2	99.4	107	-	-
14	70.1	77.1	102	110	115	124	-	-
16	91.5	101.0	134	144	-	-	-	-
18	116.0	128.0	169	183	-	-	-	-
20	143.0	157.0	209	225	-	-	-	-
