| Quantity: | |
|---|---|
| Galvanized Aircraft Cable (Not For Aircraft Use) | |||||
| Specification: RR-W-410E | |||||
| Improved Plow Steel | |||||
| Nominal | Tolerance | Approx | Approx. | Min. Breaking Strength | |
| Diameter | on Dia. | Weight | Weight | Galvanized | Stainless |
| inch | inch | kg/1000' | lb/1000' | lb | lb |

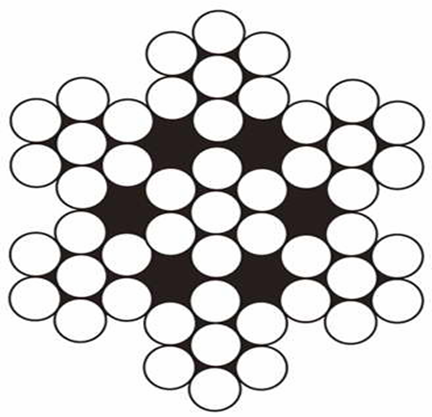

| 7 x 7 | |||||
| 3/64 | 0.008 | 1.91 | 4.2 | 270 | 270 |
| 1/16 | 0.010 | 3.40 | 7.5 | 480 | 480 |
| 5/64" | 0.010 | 4.80 | 10.6 | 650 | 650 |
| 3/32 | 0.012 | 7.26 | 16.0 | 920 | 920 |
| 1/8 | 0.014 | 12.93 | 28.5 | 1,700 | 1,700 |
| 5/32 | 0.016 | 19.50 | 43.0 | 2,600 | 2,400 |
| 3/16 | 0.018 | 28.10 | 62.0 | 3,700 | 3,700 |
| 1/4 | 0.018 | 48.30 | 106 | 6,100 | 6,100 |
| 5/16 | 0.022 | 75.80 | 167 | 9,200 | 9,000 |
| 3/8 | 0.026 | 109.00 | 240 | 13,100 | 12,600 |
| Galvanized Aircraft Cable (Not For Aircraft Use) | |||||
| Specification: RR-W-410E | |||||
| Improved Plow Steel | |||||
| Nominal | Tolerance | Approx | Approx. | Min. Breaking Strength | |
| Diameter | on Dia. | Weight | Weight | Galvanized | Stainless |
| inch | inch | kg/1000' | lb/1000' | lb | lb |
| 7 x 7 | |||||
| 3/64 | 0.008 | 1.91 | 4.2 | 270 | 270 |
| 1/16 | 0.010 | 3.40 | 7.5 | 480 | 480 |
| 5/64" | 0.010 | 4.80 | 10.6 | 650 | 650 |
| 3/32 | 0.012 | 7.26 | 16.0 | 920 | 920 |
| 1/8 | 0.014 | 12.93 | 28.5 | 1,700 | 1,700 |
| 5/32 | 0.016 | 19.50 | 43.0 | 2,600 | 2,400 |
| 3/16 | 0.018 | 28.10 | 62.0 | 3,700 | 3,700 |
| 1/4 | 0.018 | 48.30 | 106 | 6,100 | 6,100 |
| 5/16 | 0.022 | 75.80 | 167 | 9,200 | 9,000 |
| 3/8 | 0.026 | 109.00 | 240 | 13,100 | 12,600 |
