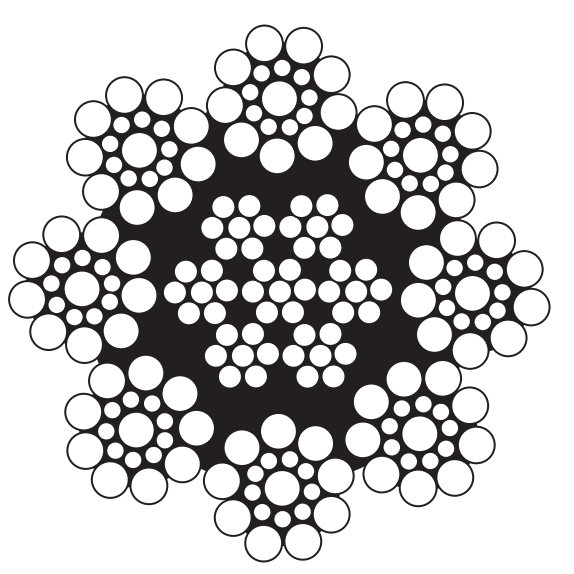

8x19(S)+IWRC

Specification: DIN3062
8x19(S)+IWRC


Nominal Diameter	Approx.		Nominal Tensile Strength
	Weight		1570 N/mm2		1770 N/mm2
	kg/100m		Minimum Breaking Strength (KN)
mm	FC	IWRC	FC	IWRC	FC	IWRC
10	34.8	42.5	45.1	53.2	50.8	59.9
11	42.2	51.4	54.5	64.3	61.5	72.5
12	50.2	61.2	64.9	76.6	73.2	86.3
13	58.9	71.9	76.1	89.8	85.9	101
14	68.3	83.3	88.3	104	99.6	117
15	78.4	95.7	101	120	114	135
16	89.2	109	115	136	130	153
17	101	123	130	154	147	173
18	113	138	146	172	165	194
19	126	153	163	192	183	216
20	139	170	180	213	203	240
22	169	206	218	257	246	290
24	201	245	260	306	293	345
